Oddball Session Scripts
This document provides an overview of the scripts specifically used for oddball experimental protocols in this project.
Standard Oddball Protocol
-
Standard_oddball.bonsai - The standard oddball protocol script (generic version)
- Located in
code/stimulus-control/src/
- For detailed information, see Standard Oddball Protocol
- Located in
-
Standard_oddball_slap2.bonsai - Standard oddball protocol optimized for SLAP2 hardware
- Located in
code/stimulus-control/src/
- For detailed information, see Standard Oddball Protocol
- Located in
Standard Oddball with Jitter Random Protocol
- Standard_oddball_jitter_random.bonsai - Standard oddball protocol with jittered timing and randomized presentation
- Located in
code/stimulus-control/src/
- For detailed information, see Standard Oddball Jitter Random Protocol
- Located in
Sensory-Motor Oddball Protocol
- Sensory_motor_oddball_slap2.bonsai - Implements the sensory-motor oddball paradigm for SLAP2 hardware
- Located in
code/stimulus-control/src/
- For detailed information, see Sensory-Motor Closed Loop Protocol
- Located in
Sequence Mismatch Protocol
- Sequence Mismatch Protocol - Implements the sequence mismatch paradigm with learned sequences
- For detailed information, see Sequence Mismatch Protocol
Generic Oddball Protocol
- generic_oddball.bonsai - Unified framework for running multiple experimental paradigms using CSV-defined stimulus parameters
- Located in
code/stimulus-control/src/Mindscope/
- Works with
generate_experiment_csv.py
to create flexible, reproducible experiments - Supports standard oddball, jitter, sequential, and motor paradigms
- For detailed information, see Generic Oddball Protocol
- Located in
Bonsai Instructions
For instructions on how to set up and run these Bonsai scripts, please refer to: - Bonsai Instructions
Adding a New Script to Documentation
If you've created a new script that should be added to this documentation, follow these steps:
-
Place your Bonsai script in
code/stimulus-control/src/
-
Add your script to this list with a brief description
-
For a new experimental protocol, create a markdown file in
docs/stimuli/
explaining:- Protocol purpose
- Key parameters and settings
- Running instructions
- Output formats
- Hardware considerations
-
Update
mkdocs.yml
to include your new markdown file
Stimulus Protocols and Analysis
This document provides an overview of the stimulus protocols in this project, now including comprehensive analysis visualizations generated from actual experimental data.
Protocol Analysis Overview
All stimulus protocols have been analyzed using real experimental data to provide clear visualizations of:
- Block Structure: Temporal organization of experimental phases
- Stimulus Progression: Evolution of stimulus parameters over time
- Oddball Distribution: Timing and frequency of mismatch events
Available Protocols

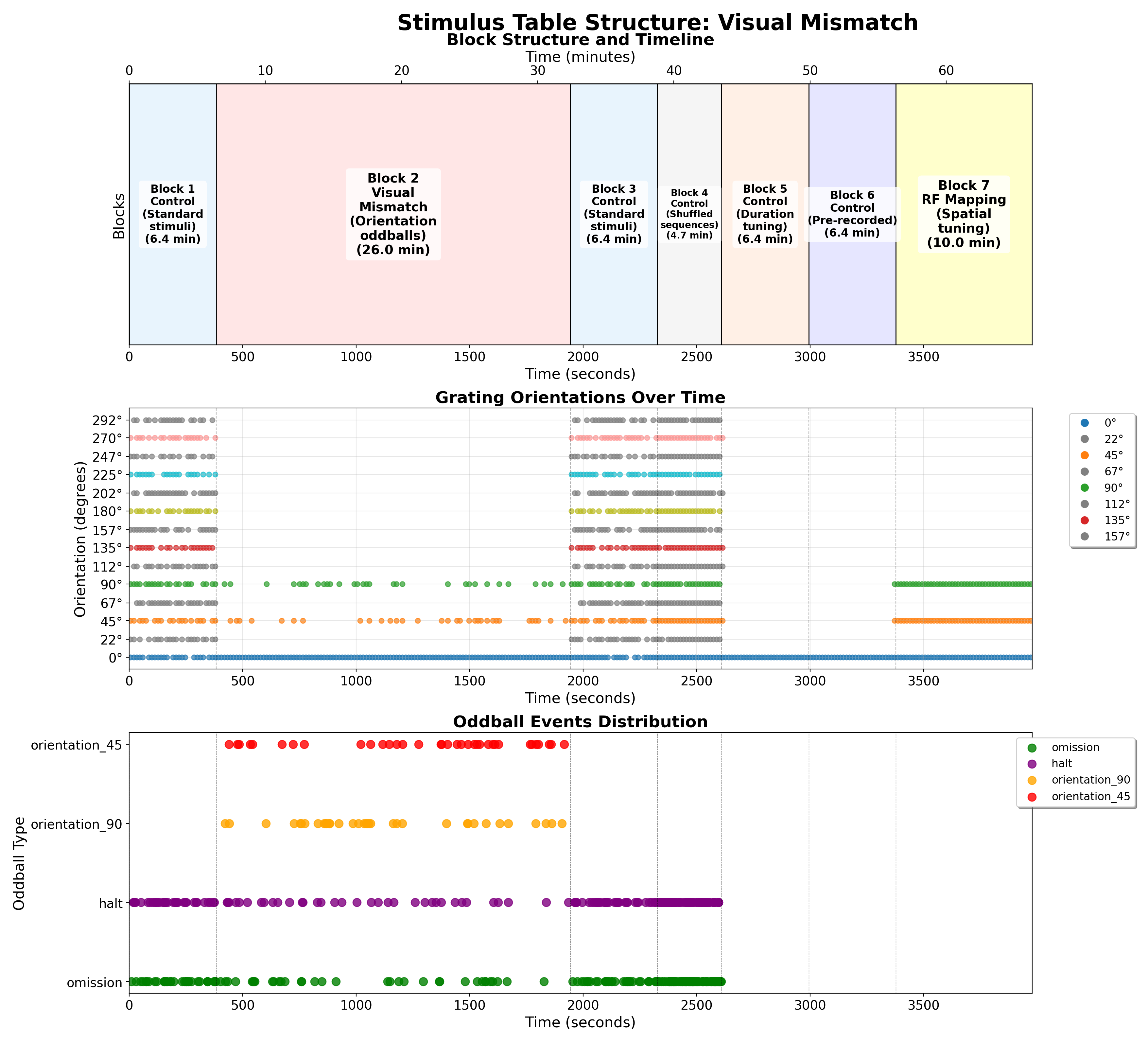

1. Visual Mismatch (Standard Oddball)
- Description: Classic oddball paradigm with orientation deviants
- Documentation: Standard Oddball Protocol
- Key Features: 0°/45°/90° orientation violations, RF mapping

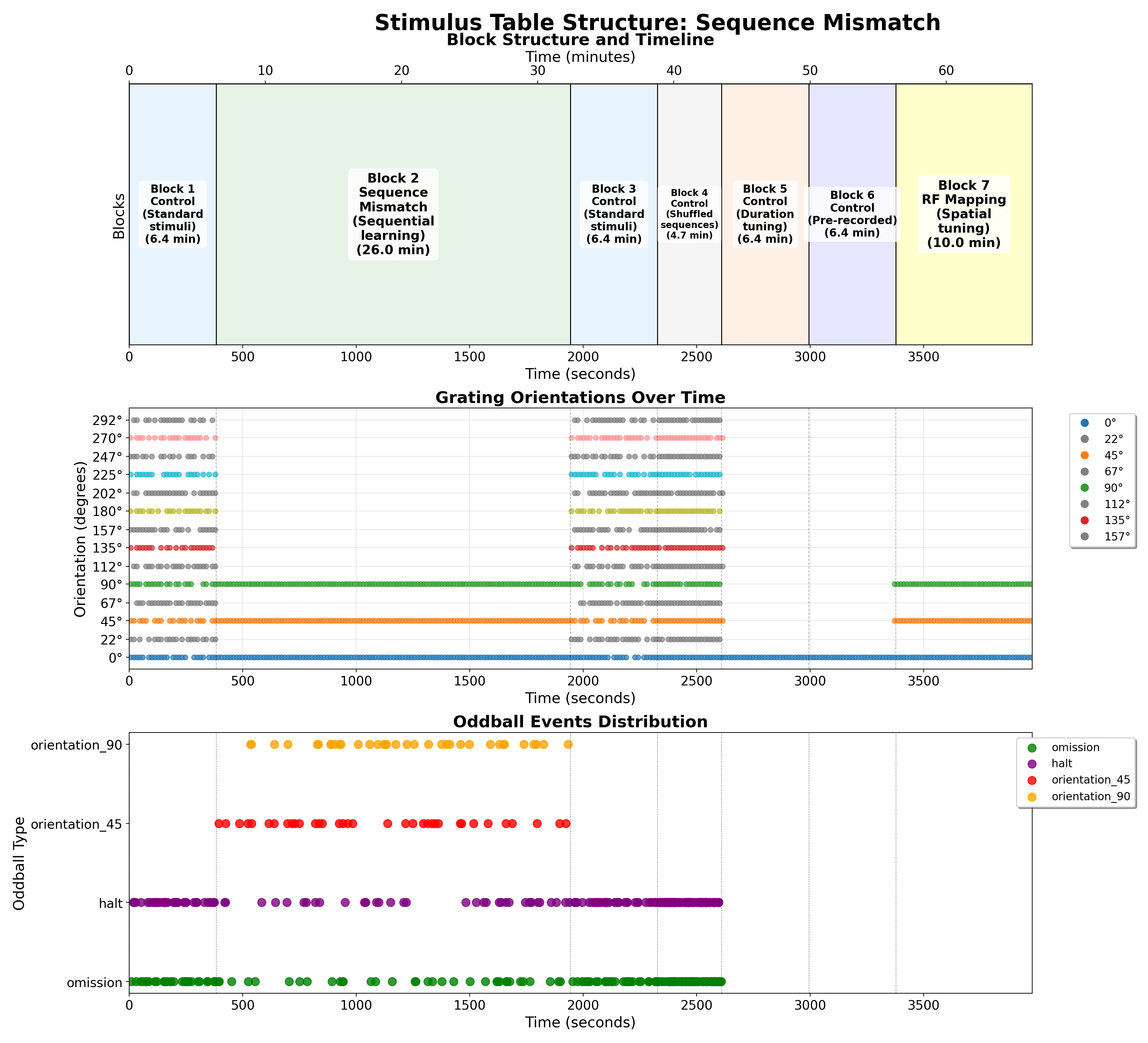

2. Sequence Mismatch
- Description: Sequential learning paradigm with pattern violations
- Documentation: Sequence Mismatch Protocol
- Key Features: Learned sequences, position-specific violations

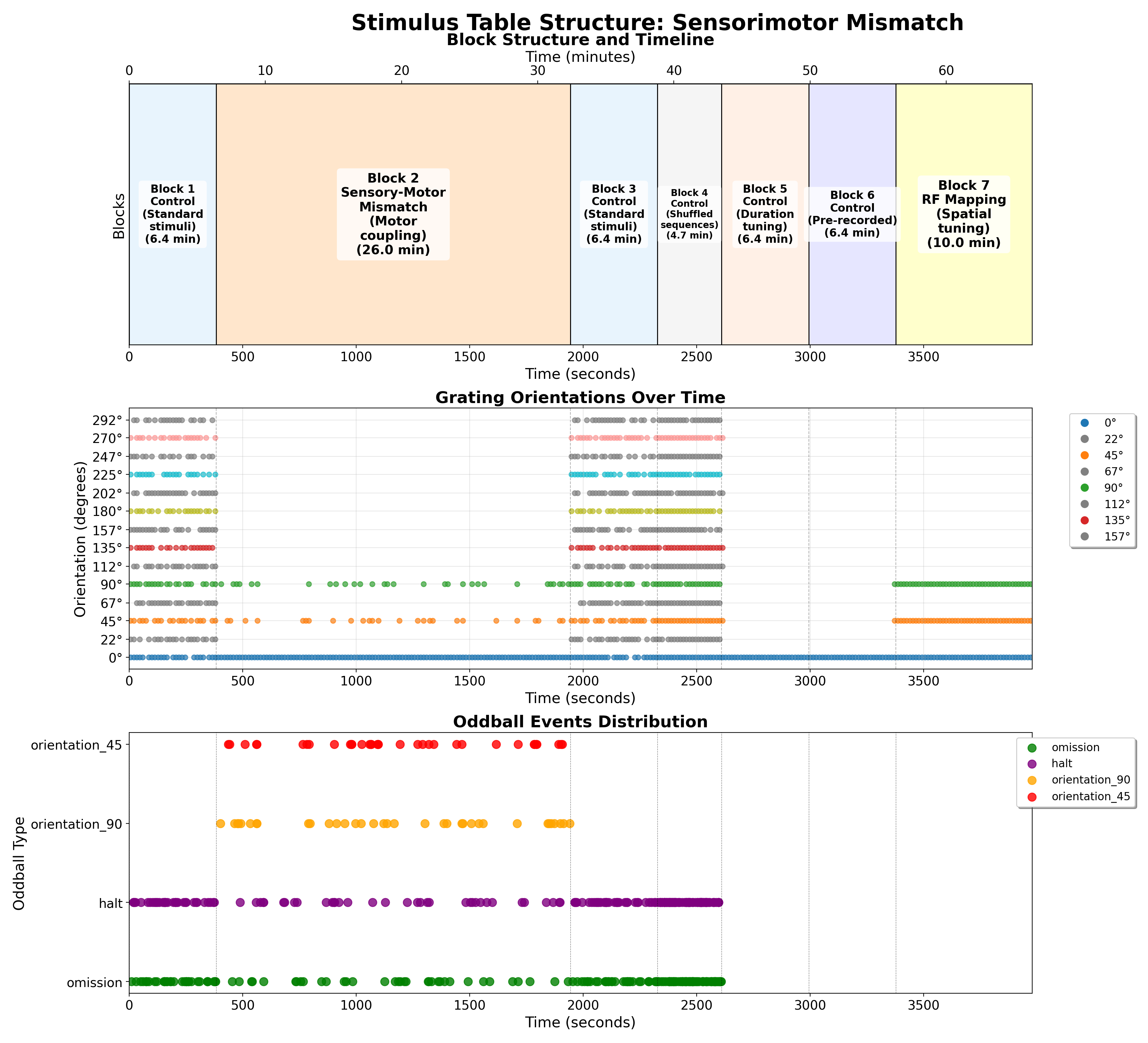

3. Sensory-Motor Mismatch
- Description: Closed-loop paradigm with motor-visual coupling violations
- Documentation: Sensory-Motor Closed-Loop
- Key Features: Wheel-coupled stimuli, expectation violations

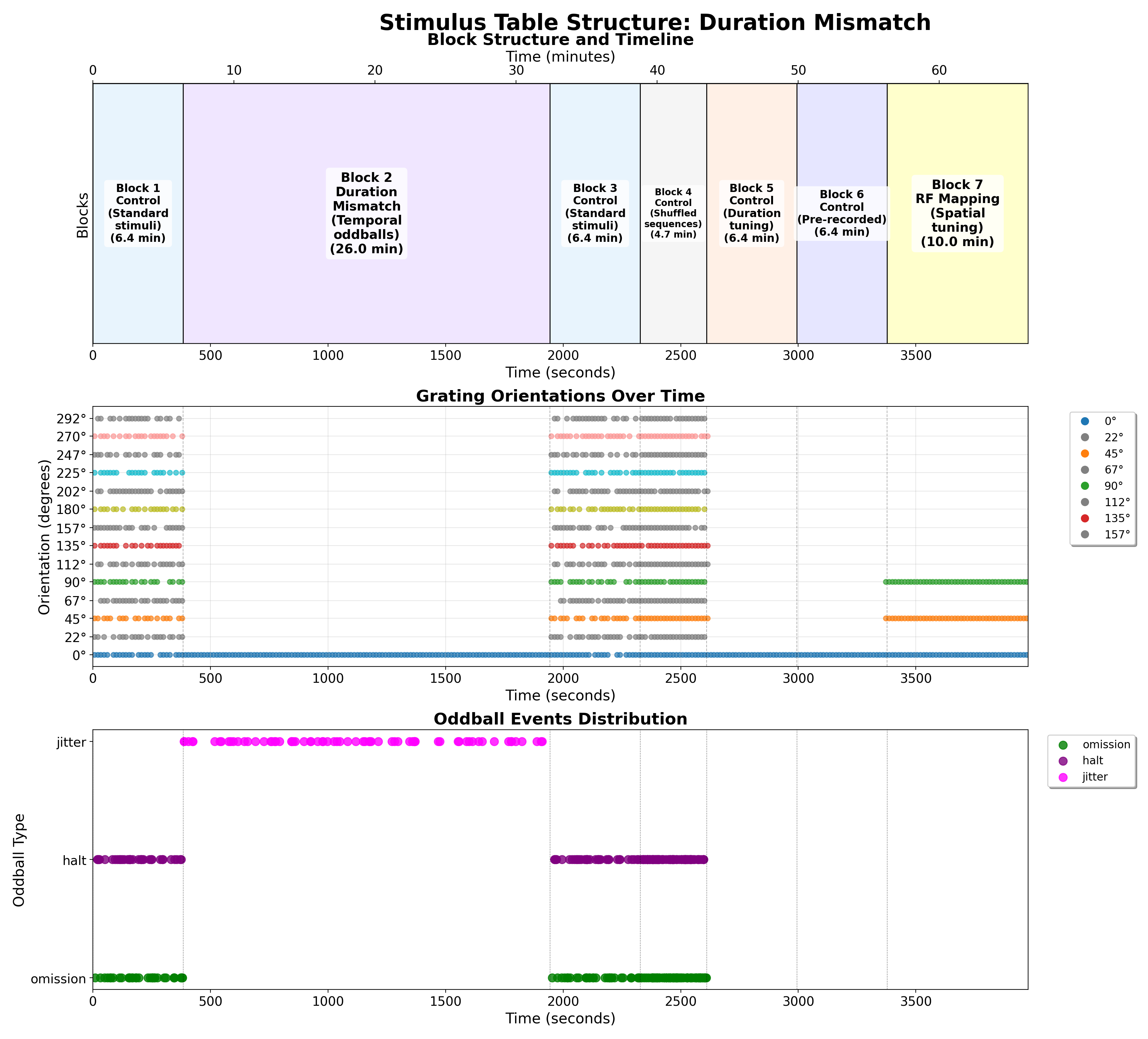

4. Duration Mismatch
- Description: Temporal predictive coding with duration violations
- Documentation: Duration Mismatch Protocol
- Key Features: Timing violations, temporal jitter

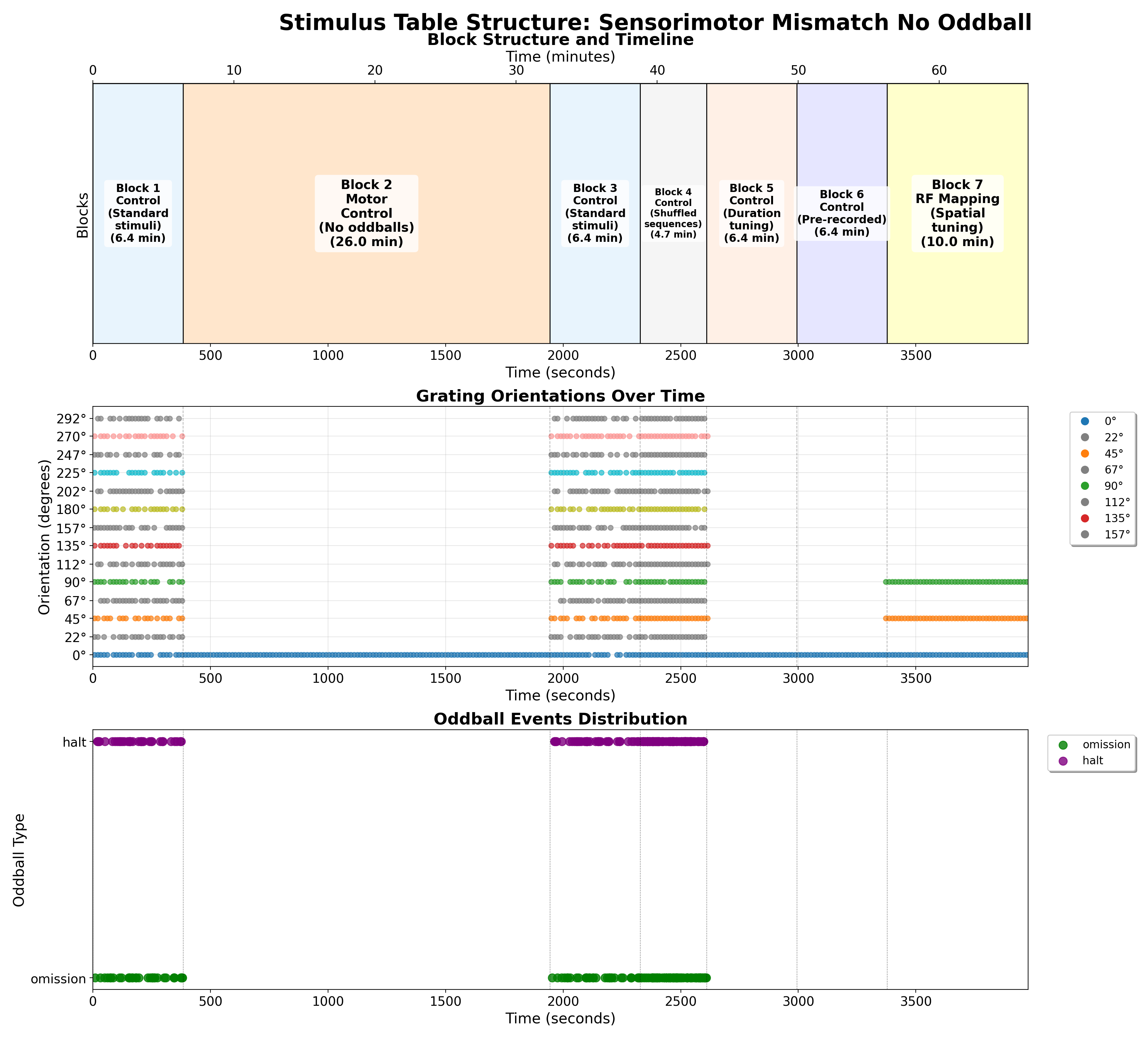

5. Control Protocols
- Description: Control conditions without oddball violations
- Key Features: Matched stimulation without prediction errors
Analysis Features
Each protocol analysis includes: 1. Block Timeline: Shows duration and sequence of experimental blocks 2. Orientation Progression: Displays stimulus parameters over time 3. Oddball Events: Highlights timing and distribution of mismatch events
These visualizations are generated from actual stimulus tables and provide researchers with clear expectations of experimental structure and timing.
Legacy Documentation
The following sections contain the original protocol listings:
Standard Oddball Protocol
-
Standard_oddball.bonsai - The standard oddball protocol script (generic version)
- Located in
code/stimulus-control/src/
- For detailed information, see Standard Oddball Protocol
- Located in
-
Standard_oddball_slap2.bonsai - Standard oddball protocol optimized for SLAP2 hardware
- Located in
code/stimulus-control/src/
- For detailed information, see Standard Oddball Protocol
- Located in
Standard Oddball with Jitter Random Protocol
- Standard_oddball_jitter_random.bonsai - Standard oddball protocol with jittered timing and randomized presentation
- Located in
code/stimulus-control/src/
- For detailed information, see Standard Oddball Jitter Random Protocol
- Located in
Sensory-Motor Oddball Protocol
- Sensory_motor_oddball_slap2.bonsai - Implements the sensory-motor oddball paradigm for SLAP2 hardware
- Located in
code/stimulus-control/src/
- For detailed information, see Sensory-Motor Closed Loop Protocol
- Located in
Sequence Mismatch Protocol
- Sequence Mismatch Protocol - Implements the sequence mismatch paradigm with learned sequences
- For detailed information, see Sequence Mismatch Protocol
Generic Oddball Protocol
- generic_oddball.bonsai - Unified framework for running multiple experimental paradigms using CSV-defined stimulus parameters
- Located in
code/stimulus-control/src/Mindscope/
- Works with
generate_experiment_csv.py
to create flexible, reproducible experiments - Supports standard oddball, jitter, sequential, and motor paradigms
- For detailed information, see Generic Oddball Protocol
- Located in
Bonsai Instructions
For instructions on how to set up and run these Bonsai scripts, please refer to: - Bonsai Instructions
Adding a New Script to Documentation
If you've created a new script that should be added to this documentation, follow these steps:
-
Place your Bonsai script in
code/stimulus-control/src/
-
Add your script to this list with a brief description
-
For a new experimental protocol, create a markdown file in
docs/stimuli/
explaining:- Protocol purpose
- Key parameters and settings
- Running instructions
- Output formats
- Hardware considerations
-
Update
mkdocs.yml
to include your new markdown file
Related Documents
- Bonsai Instructions: How to set up and run Bonsai scripts
- Standard Oddball: Details about the standard oddball paradigm
- Sensory-Motor Closed Loop: Information about the sensory-motor paradigm
- Sensory-Motor Coupling: Technical details about wheel-to-visual coupling implementation
- Experimental Plan: Overview of all experimental paradigms
