Launcher Architecture

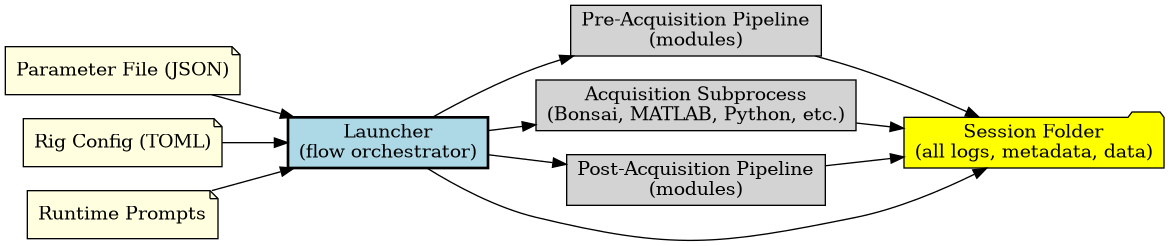

Experiment Flow Diagram

Note

The launcher manages the entire experiment flow: merging parameters, prompting for missing info, running pre-acquisition modules, launching the acquisition subprocess, and running post-acquisition modules. All steps, including the launcher itself, write to the session folder.

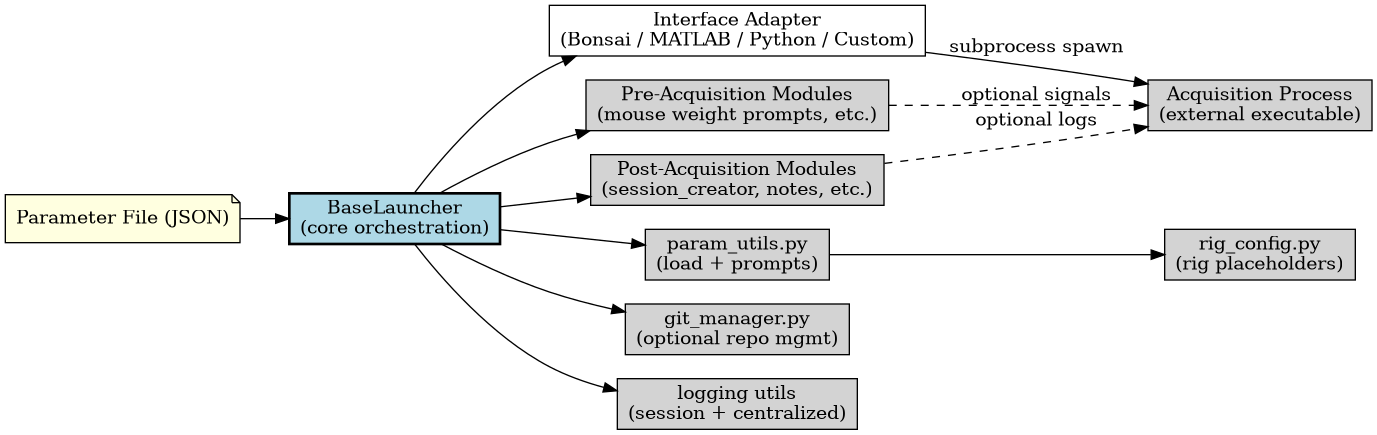

System Architecture Diagram

Note

A single BaseLauncher orchestrates experiments. Lightweight interface adapters handle only subprocess creation; extend or override _create_process for custom environments.

Launcher Flow Overview

1. Parameter File Input: - The user provides a parameter file (JSON) to the launcher.

2. Rig Config Merge: - The launcher loads the rig config (TOML) and merges it with the parameter file (parameters override rig config).

3. Runtime Prompts: - The launcher interactively prompts for any missing required values, which override both param file and rig config.

4. Pre-Acquisition Pipeline: - The launcher runs each pre-acquisition module in order, passing the merged parameter file. Each module can read/write to the session folder.

5. Acquisition Subprocess: - The launcher starts the main experiment process (Bonsai, MATLAB, Python, etc.) with the merged parameters. The subprocess writes data and logs to the session folder.

6. Post-Acquisition Pipeline: - After acquisition, the launcher runs each post-acquisition module in order, again passing the merged parameter file. These modules can generate session files, enhance metadata, and write results to the session folder.

All steps (launcher, pre-acquisition modules, acquisition subprocess, post-acquisition modules) write logs, metadata, and data to the session folder.

Repository Folder Structure

• src/openscope_experimental_launcher/: Main package source code

  • launchers/: Core BaseLauncher and optional custom subclasses

  • interfaces/: Lightweight interface adapters for spawning external processes

  • pre_acquisition/: Modular pre-acquisition pipeline modules (mouse weight prompts, etc.)

  • post_acquisition/: Modular post-acquisition pipeline modules (session creation, notes, enhancement, etc.)

  • utils/: Shared utilities (configuration, git, logging, etc.)

• params/: Example and project-specific parameter files (JSON)

• tests/: Unit and integration tests for all core logic and modules

• docs/: Documentation sources (reStructuredText, Sphinx, and build scripts)

• run_launcher.py: CLI entry point for running experiments with a parameter file

• run_module.py: CLI entry point for running any pipeline module directly

• setup.py, pyproject.toml: Packaging and build configuration

• README.md, LICENSE, etc.: Project metadata and top-level documentation

Philosophy: Modular Pre- and Post-Acquisition

The OpenScope launcher is designed for maximum flexibility and reproducibility. All experiment-specific logic (e.g., mouse weight prompts, experiment notes, data enhancement) is handled by modular pipeline modules, not the launcher core. This ensures:

• Generic launchers for each language/software (Bonsai, MATLAB, Python)

• All pre- and post-acquisition steps are modular and easily extended

• Parameter files define which modules run for each experiment

• Symmetry: Pre- and post-acquisition are handled identically, via ordered module lists

How Modules Are Inserted

To add a pre- or post-acquisition step, simply add the module name to the appropriate list in your parameter file:

{
   "pre_acquisition_pipeline": ["mouse_weight_pre_prompt"],
   "post_acquisition_pipeline": ["mouse_weight_post_prompt", "experiment_notes_post_prompt"],
   ...
}

Each module is a Python file in src/openscope_experimental_launcher/pre_acquisition/ or post_acquisition/, and must accept a param_file argument and return 0 for success, 1 for failure.

For more, see the Pre-Acquisition Modules and Post-Acquisition Modules sections of Pre- and Post-Acquisition Modules, and the Contributing to OpenScope Experimental Launcher guide.
